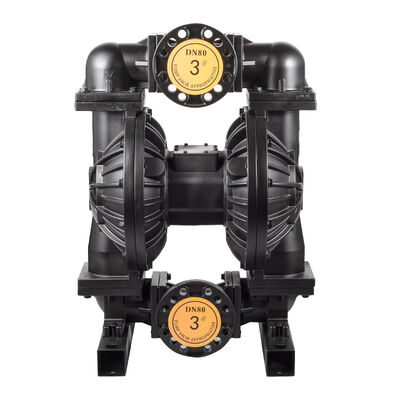

Productdetails:
|
| application: | Other | pressure: | Low Pressure |
|---|---|---|---|
| warranty: | 1 year | customized support: | OEM, ODM |
| motor: | NO | outlet size: | 3 inch |
| power source: | Pneumatic | structure: | Diaphragm Pump |
| voltage: | NO | Material: | Ductile Iron |
| Name: | AODD Pump | Color: | black |
| Weight: | 100kgs | Diaphragm: | PTFE |
| Brand: | RV | Packing: | carton |
| Max pressure: | 120psi(0.84Mpa,8.4bar) | Pump body: | Ductile Iron |
| Max Flow: | 270gpm(1022lpm) | Power: | NO |
| Markeren: | 3 inch legering diafragma pomp,pneumatische dubbele diafragma-oliepomp,met een vermogen van niet meer dan 50 W |
||
Maximale werkdruk | 120 psi (0,84Mpa, 8,4bar) |
Maximale doorstroming | 270 gpm ((1022 Lpm) |
Maximale wisselende snelheid | 135cpm |
Maximale zuighoogte (droogzuigen) | 5 m |
Maximaal toegestane graan | 0.37in. (9.4mm) |
Maximaal luchtverbruik | (90L/S) |
Grootte van de luchtinlaat | 3/4in |
Grootte van de luchtuitlaat | 1 in |
Grootte van de vloeistofinlaat | 3 in |
Grootte van de vloeistofuitlaat | 3 in |
Gewicht | Aluminium 99,5 kg Ductiel ijzer 200 kg |
